Understanding Modern Networks: From Jumbo Frames to Jumbo Platform and JumboIX

Few technologies in modern network infrastructure offer the clear and measurable performance benefits that Jumbo frames do, yet their implementation remains either poorly understood or underutilized. Since their introduction by Alteon WebSystems in 1998, Jumbo frames have evolved from a niche technology to a key component for high-performance networks, especially in scenarios involving large data transfers, real-time streaming, and database operations. In this manner, IPTP Networks applies this technology to find its practical implementation in the global infrastructure solution called Jumbo Platform, which has been designed for addressing the modern networking challenges while providing substantial performance improvements.

The Technical Basis and Evolution of Jumbo Frame Technology

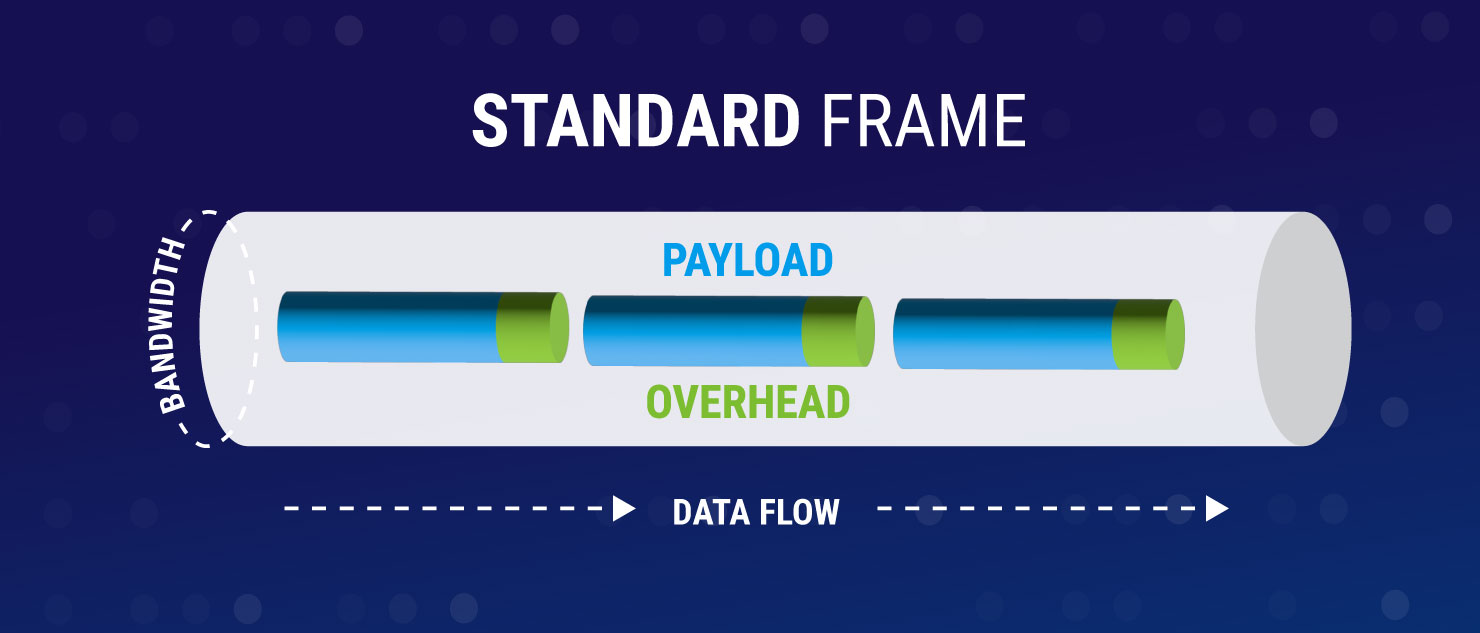

Jumbo frames arose from a rather simple observation related to network efficiency: the commonly employed Ethernet frame size, 1500 bytes, albeit universal, needlessly adds a lot of overhead when transferring any large quantity of data. All frames, no matter their size, have to have the same amount of header information: 14 bytes for the Ethernet header, 20 bytes for the IPv4 header, 20 bytes for the TCP header, and 4 bytes for the Frame Check Sequence (FCS). That can give quite a significant overhead, both in network bandwidth wasted and processing resources—more so if doing large file transfers or streaming.

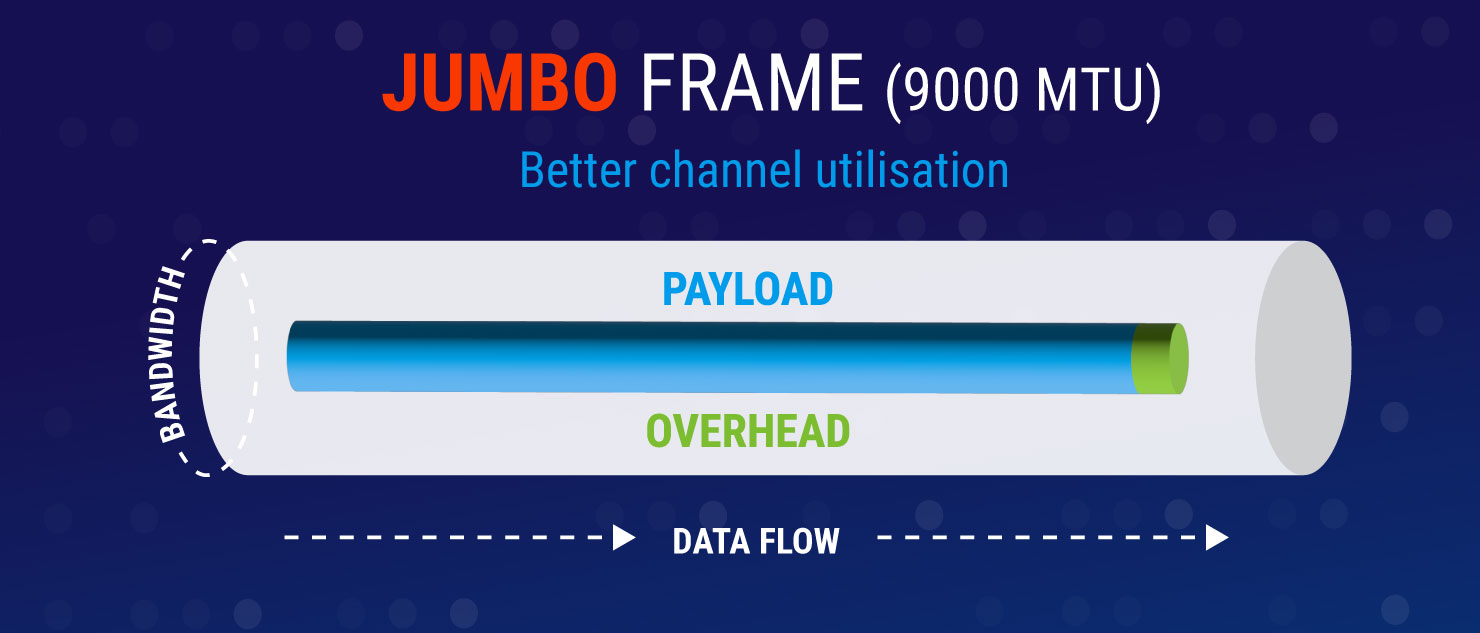

Jumbo frames compensate for this inefficiency by supporting payloads as large as 9000 bytes, but retaining the same size headers. The effect of this innocuous-sounding change has a dramatic effect on network performance. If one is sending a big file, doing so with jumbo frames implies only about one-sixth the number of packets as standard frames. Each packet involves CPU interrupts and processing overhead, so the number of packets reduced directly impacts system performance and latency. In particular, this efficiency gain is most apparent in high-speed networks: on a saturated 10G link, the reduction in overhead can free up to 4 Mbps of bandwidth; similarly, CPU utilization often drops by 30-50% for the same amount of data.

The development of jumbo frame technology has gone hand in hand with the development of high-speed networking. As networks transitioned from 1G to 10G and beyond, the advantages of a larger frame size became more pronounced. Jumbo frames are standard in most contemporary network equipment, from switches to network interface cards; however, this feature remains turned off by default in many devices. With the increasing adoption of high-speed networks and growing demands on efficient data transfer, Jumbo Frame technology has been getting renewed interest, especially in scenarios involving data center interconnects, cloud computing, and high-performance computing applications.

Jumbo Platform: Technical Architecture and Global Implementation

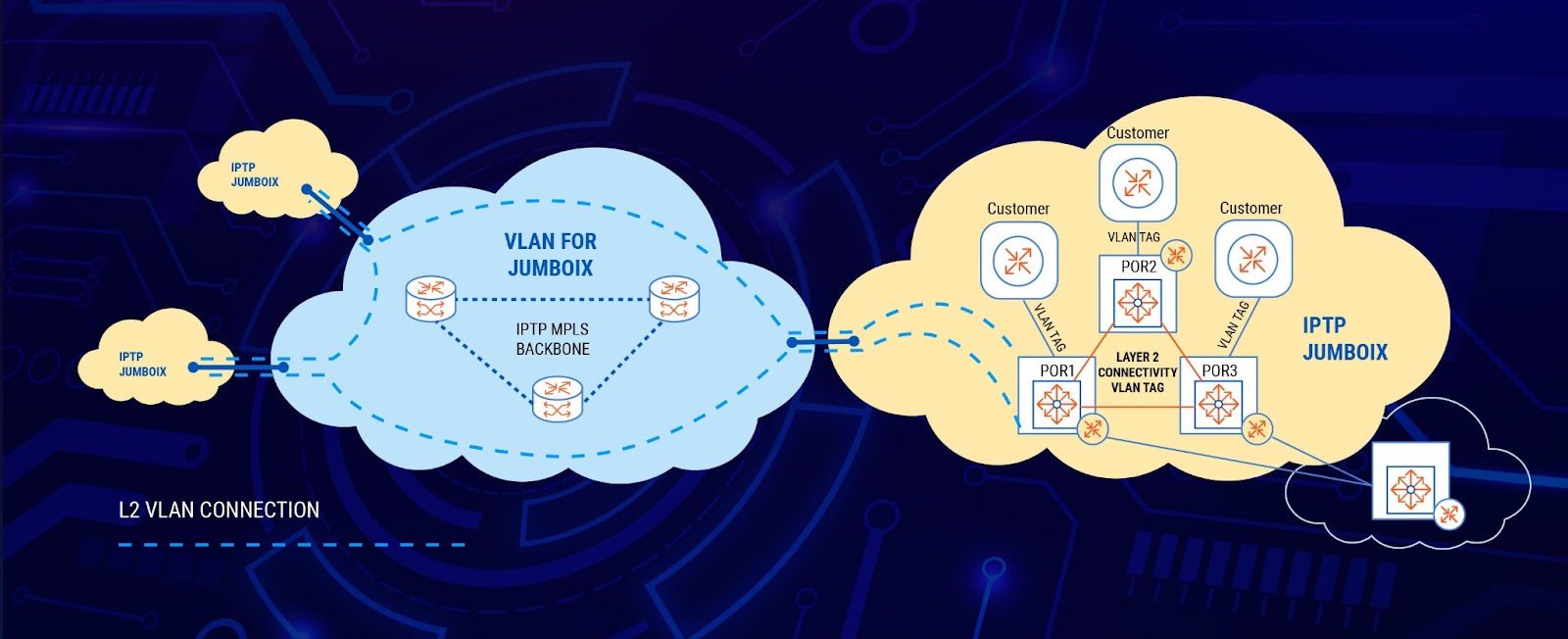

Jumbo Platform is a holistic approach by IPTP Networks in deploying jumbo frame technology across the global network infrastructure. The platform runs over a hybrid L2/L3 topology, giving the best of performance to be had with direct Layer 2 connections and the flexibility and scalability inherent in routed Layer 3 networks. This architectural choice allows for seamless integration with existing infrastructure and an evident path of performance optimization by way of adopting Jumbo frames.

The infrastructure of the platform spans multiple strategic locations across the globe, with a strong footprint in key markets across the Americas, Europe, and Asia. Every PoP has high-capacity switches that support native Jumbo frames; multiple, redundant paths are deployed to always ensure connectivity is maintained.

Jumbo Platform technical implementation addresses several critical aspects of modern network operations. Supported speeds range from 1G to 100G, with tiered pricing that makes high-performance connectivity accessible to organizations of various sizes. This infrastructure embeds advanced monitoring and management capabilities, allowing for real-time performance tracking and quick response to any issues. Security considerations are integrated into the design of the platform, where support for modern protocols and encryption standards ensures integrity and privacy of data.

As an extension of the Jumbo Platform, JumboIX was proposed as a classical L2 Internet Exchange with Jumbo Frames support. A look into the peer ecosystem within JumboIX reveals the versatility of the platform. Major providers at 100G, such as Cloudflare and global gaming companies, showcase the ability of the platform to handle high-performance requirements, while regional and local providers connecting at lower speeds benefit from the same technology, creating a diverse and interconnected network environment. That is an approach to an ecosystem that makes sure all participants, regardless of their size, can reap the benefits of better performance yet stay connected to a wide array of networks.

The Lima JumboIX deployment is one of the best examples of the capabilities of the platform, with impressive metrics: 508G total speed across 28 connections, with an 89% IPv6 adoption rate and 27 active peers ranging from major content providers to regional networks.

Performance Impact and Practical Applications

The real-world impact of Jumbo Platform can best be illustrated through concrete use cases, where the advantages of Jumbo frame technology are most clearly shown. One such example is database synchronization between data centers: the transfer of large blocks of data results in a much better performance and reduced system load due to the reduction in packet processing overhead. This benefits video streaming services to supply high-quality content, as the larger frame sizes also help to improve the efficiency of backup and disaster recovery operations that need to move vast volumes of data between sites.

Better still, performance advantages aren’t purely related to pure data transfer rates. As there are fewer packets that need to be processed, Jumbo Platform also assists in the reduction of latency and jitter—critical components for real-time applications and services. This lower processing overhead also translates to increased power efficiency, which has become increasingly significant in the current data center operational environment. This saving occurs in multitiered environments with numerous related services or applications, in which, because of the additive effect, superior network efficiency will most definitely produce noticeable effects on general system performance.

Furthermore, several specialized business scenarios demonstrate the particular advantages of Jumbo Platform implementation of Jumbo frames:

Financial Services and Trading Platforms High-frequency trading environments and financial data processing benefit significantly from Jumbo Platform architecture. The reduced packet overhead translates to microsecond-level latency improvements – crucial for algorithmic trading systems where every microsecond counts. One major Asian trading platform reported a 35% reduction in trade execution latency after implementing Jumbo Platform.

Media Production and Post-Production Global media production houses working with 4K and 8K video content experience substantial improvements in their workflow efficiency. The larger frame size perfectly accommodates the transfer of massive video files between production facilities. A European post-production studio documented transfer speed improvements of up to 40% for their daily 8K footage transfers between offices in Paris and London.

Cloud Gaming Services The gaming industry, particularly cloud gaming providers, benefits from Jumbo Platform ability to handle sustained high-bandwidth, low-latency requirements. The reduction in packet processing overhead directly translates to smoother gameplay and reduced input lag. Several major gaming platforms have reported up to 25% improvement in stream stability and reduced frame dropping after integrating with Jumbo Platform..

Healthcare Imaging Systems Medical facilities dealing with large imaging files (MRI, CT scans) have found Jumbo Platform particularly valuable for their inter-facility transfers. The platform’s efficiency in handling large data blocks makes it ideal for transferring high-resolution medical images while maintaining the strict data integrity requirements of healthcare systems. A network of hospitals in Southeast Asia reported 45% faster transfer times for their diagnostic imaging systems while maintaining full HIPAA compliance.

AI/ML Development Operations Organizations running distributed AI training operations benefit from Jumbo Platform efficiency in handling large data sets. The reduced overhead becomes particularly significant when transferring massive training datasets between compute clusters. A major AI research facility documented a 30% reduction in model training time, primarily attributed to more efficient data transfer between their distributed training nodes.

Outlook: Infrastructural Evolution and Capabilities in the Offing

The continuous evolution of network demands shapes the future development of Jumbo Platform and similar platforms. With data volumes growing exponentially and new applications emerging that require ever-increasing bandwidth, the advantages of Jumbo frame technology become increasingly relevant. IPTP Networks maintains its commitment to expanding platform capabilities while ensuring backward compatibility and seamless integration with existing infrastructure.

Development is currently focused on supporting even larger frame sizes where appropriate, which may bring a number of applications benefits accruing from super jumbo frames greater than the current 9000-byte standard. Such developments, however, need to very carefully weigh potential performance gains against more practical factors, such as error detection capabilities and network equipment compatibility. Its existing 89% IPv6 adoption rate among peers means that the platform is well-prepared for any future protocol developments, while its infrastructure design provides for increasing bandwidth demand.

As network technology continues to advance, the Jumbo Platform will be well-placed to adapt and evolve with the times, holding its place as an integral part of modern network infrastructure. With continued development and strategic expansion, this platform will keep on delivering to organizations the means of optimizing their network performance in preparation for the challenges in the digital landscapes of tomorrow.
